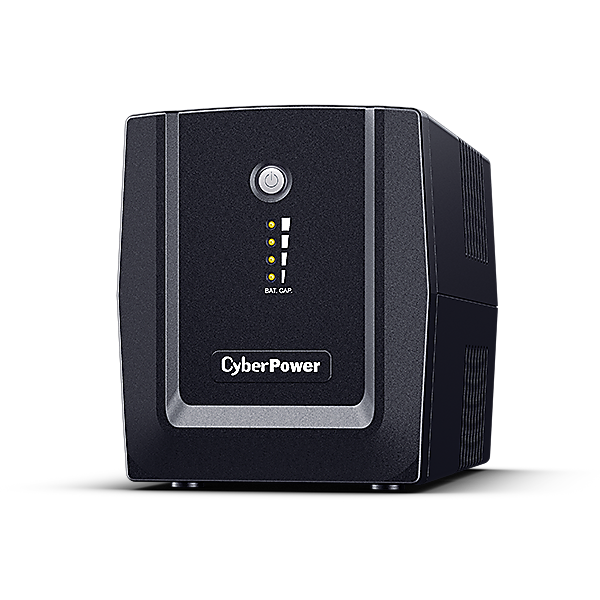

UT1200E

  • VA: 1200
  • Watts: 720
  • Output Voltage ( Vac ): 230 ± 10 %
  • Runtime at 90W ( min ): 40
  • Outlets: IN/ZA x 4
  • Automatic Voltage Regulation (AVR)
  • Generator Compatible
  • LED Status Indicator
SKU: Pantum - UPS Systems UT1200E Category: Brand:

Description

General

  • Phase: Single Phase
  • Form Factor: Tower
  • UPS Topology: Line-interactive

Input

  • Generator Compatibility: Yes
  • Nominal Input Voltage ( Vac ): 230 ± 10%
  • Input Voltage Range ( Vac ): 140 ~ 300
  • Input Frequency ( Hz ):
    50 ± 10
    60 ± 10
  • Input Frequency Detection: Auto-sensing
  • Rated Input Current ( A ): 5.45
  • Input Connector Type: IN/ZA
  • Power Cord Length (ft.): 4
  • Power Cord Length (m.): 1.2

Output

  • Capacity (VA): 1200
  • Capacity (Watts): 720
  • On Battery Waveform: Simulated Sine Wave
  • On Battery Voltage(s) ( Vac ): 230 ± 10 %
  • On Battery Frequency ( Hz ):
    60 ± 1%
    50 ± 1%
  • Automatic Voltage Regulation (AVR): Double Boost, Single Buck
  • Overload Protection: Circuit Breaker
  • Outlet(s) – Total: 4
  • Outlet Type: IN/ZA x 4
  • Outlet(s) – Battery Backup: 4

Battery

  • Runtime at 60W ( min ): 65
  • Runtime at 90W ( min ): 40
  • Runtime at 200W ( min ): 14
  • Typical Recharge Time ( Hours ): 8
  • Start On Battery: Yes
  • User-replaceable: No

Surge Protection & Filtering

  • EMI/RFI Filtration: Yes

Management & Communications

  • LED Indicators: Power On, Line Mode, Battery Mode, Battery Capacity, Low Battery
  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault

Physical

  • Enclosure Construction: Plastic
  • Color: Black

Physical Size – UPS Module

  • Dimensions (WxHxD) (in.): 5.83 x 7.01 x 11.73
  • Dimensions (WxHxD) (mm.): 148 x 178 x 298
  • Weight (lbs.): 16.8
  • Weight (kg.): 7.6

Shipping Dimensions

  • Dimensions (WxHxD) (in.): 10.67 x 7.95 x 15.63
  • Dimensions (WxHxD) (mm.): 271 x 202 x 397
  • Weight (lbs.): 17.9
  • Weight (kg.): 8.1

Environmental

  • Operating Temperature (°F): 32 ~ 102
  • Operating Temperature (°C): 0 ~ 40
  • Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 90
  • Operating Elevation ( feet/meters ): 0-9,843 feet (0-3,000 meters)
  • Storage Temperature (°F): -4 ~ 122
  • Storage Temperature (°C): -20 ~ 50
  • Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 90
  • Storage Elevation ( feet/meters ): 0-9,843 feet (0-3,000 meters)
  • Online Thermal Dissipation ( BTU/hr ): 52
  • Audible Noise at 1.5M from Surface of Unit ( dBA ): 40

Certifications

  • Certifications: BIS
  • RoHS: Yes

WARRANTY

  • Product Warranty Period (Year): 2
  • Battery Warranty Period (Year): 2
